Products listMobile Crawler Equipment

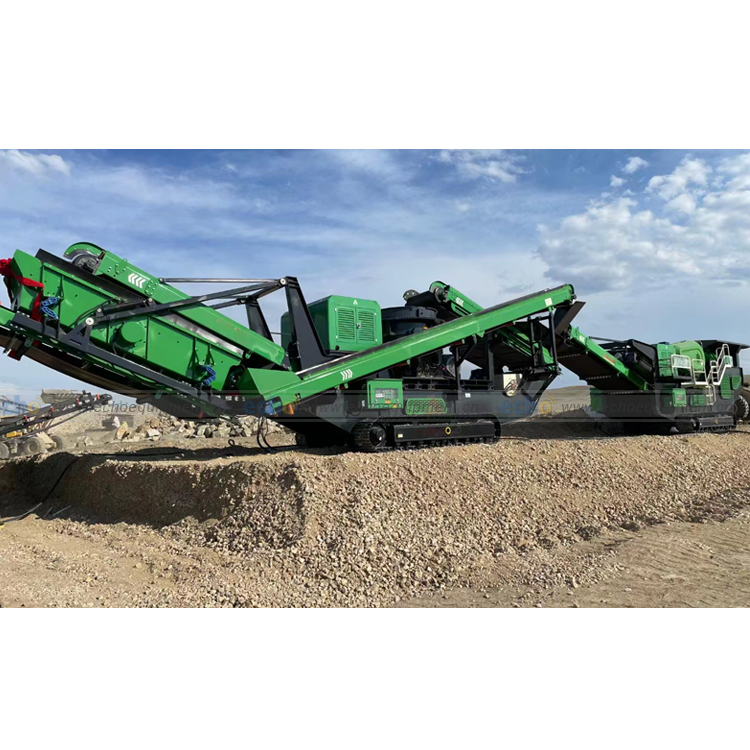

  • Mobile Crawler Cone Crusher

Products:

The product is suitable for medium to high hardness, high abrasive natural stones, and also suitable for the processing of mineral materials in applied mines. Cone-type expansion equipment can ensure the production of cubic pellets that meet the requirements in the second and third stages. The purpose of the equipment has different sizes and designs.

Technical Parameters:

Technical details

Model

EC430

EC440

EC200

EC300

Capacity (t/h)

70-210

100-350

90-220

100-425

Feed opening diameter (mm)

Φ1360

Φ1540

Φ940

Φ1120

discharges size (mm)

6-38

8-44

10-38

8-45

Conveyor belt (mm)

600-1000

600-1000

600-1000

600-1000

Stack height (m)

3

3.1

3

3.1

Host power (kw)

160

250

160

250

Total power (kw)

223

313

223

317.2

Transport

Equipment size
(length * width * height) (m)

17*4.1*4.8

17.6*3.7*3.8

17*4.2*5.2

17.6*3.7*3.8

Total weight of equipment (t)

45

50

42

49

Option

*Screening system
*Onboard air compressor
*Customized painting
*Main conveyor service device
*Customized motor brand

If you do not see equipment you are looking for, please contact us info@echomachinery.cn or call us today +86-21-61845965
