Brief Introduction:

The 150t/h – 200t/h stone crushing plant is designed for medium scale stone quarrying plant, aggregate plant, mineral beneficiation plant and so on.The production capacity of 150 t/h- 200 t/h is popular in the world for the contractors and final users.

In comparison with 100t/h -150t/h stone crushing plant, 150t/h – 200t/h (output 150-200 ton per hour) crushing line is more competent when processing medium or over hard ores, especially while it is used for producing big aggregate.

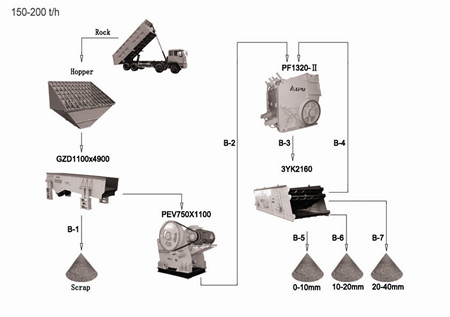

All the machines applied in this production line work together and form a circle flow production line, which improve the efficiency and make the central control easier.

The primary jaw crusher PEV750X1100 equips with stronger, enhanced jaw plates and larger feed opening, which increases the reduction ratio. In addition, thicker steel plate has been applied to main frame and flywheels, while the diameter of the flywheels are enlarged that greatly increased the weight of the machine, so when it works, the vibration is very slight but the crushing kinetic energy is very forceful.

The secondary crusher we use is impact crusher which is widely used and welcomed by users in lots of countries due to its high working efficiency.

For the purpose of improving finished products’ quality, water pipe or other washing equipments can be equipped upon filtrating equipments to clean the finished products.This production line calls for medium investment, you always get much more than you pay, it is the ideal choice for the clients.

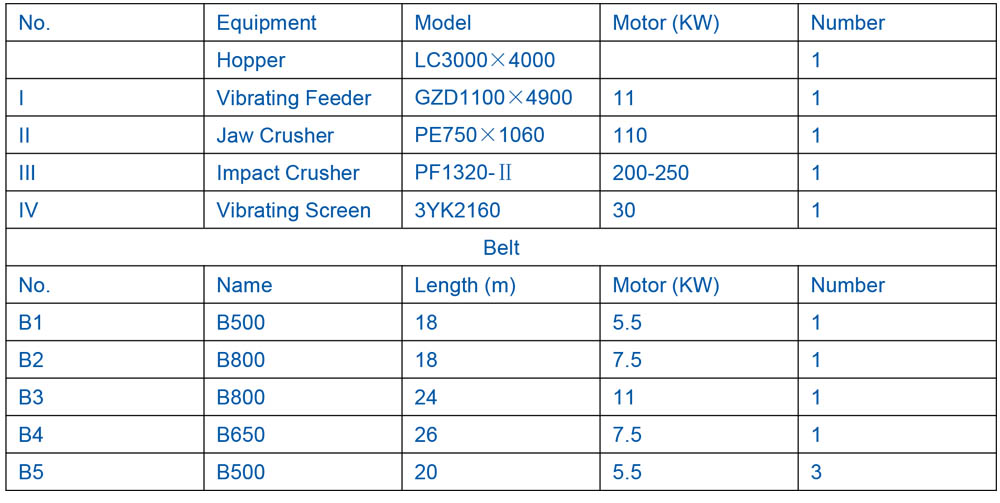

Technical Parameters:

Note: No further notice if the technical parameters change.
