400T/H - 500T/H Stone Crushing Plant

Author: admin Viewed: 1076Close

2018-04-17 11:18:51

Brief Introduction:

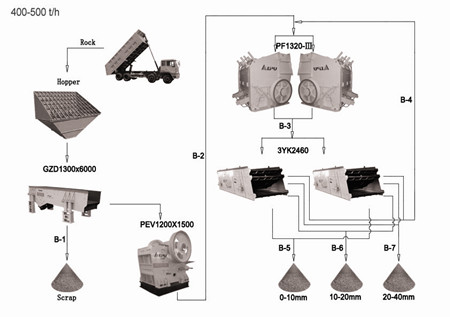

400t/h - 500t/h (output 400-500 ton per hour) crushing plant features for its large scope production, good performance, convenient operation, this line can achieve high reduction ratio with great output.


Jaw crusher model PE1200X1500 works as primary crushing, its over sized feed opening & unique Jaw plates make it readily crush 630mm into small sizes. All the spare parts assembled are of top quality (bearing, motor, eccentric shaft, screen mesh, etc.), this ensure the stable working status for all the equipments.


Secondary crushing process is performed by two sets of impact crusher model PF-1320 which is superior in its larger feed opening and rotor, the final product sizes can be controlled through regulating impact-bracket.


The final products are of regular cube shape, high compressive strength, needle shape take up small proportion, no inner-cracks. They are quite suitable for speedway, bridge, tunnel and other construction projects.

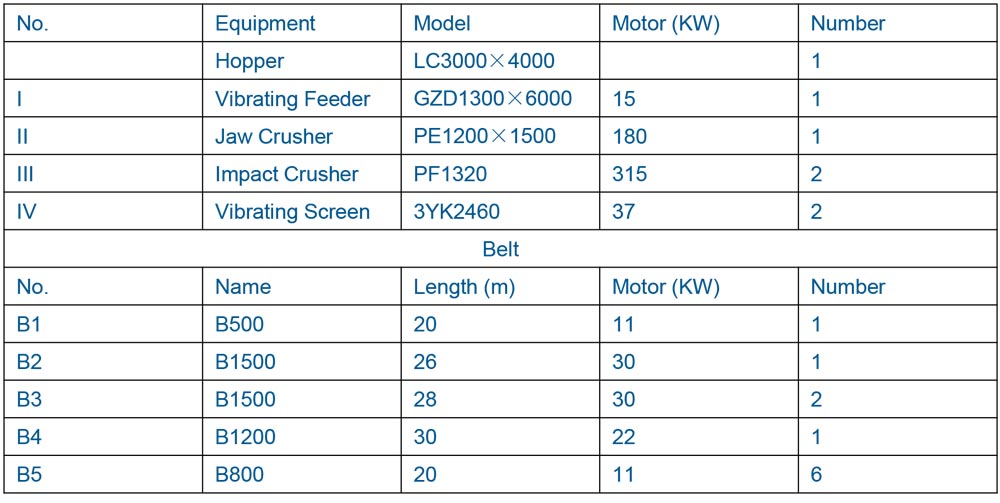

Technical Parameters:

Note: No further notice if the technical parameters change.
