Brief Introduction:

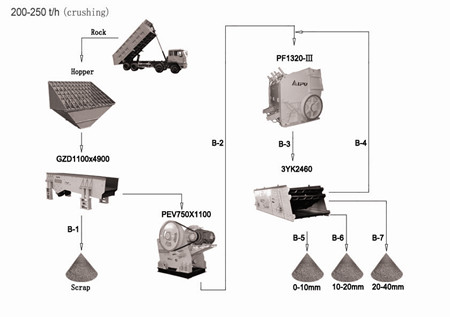

The 200t/h–250t/h stone crushing plant is designed for medium scale stone quarrying plant, aggregate plant, mineral beneficiation plant and so on.This type stone crushing plant is suitable for crushing all kind of rocks, stones, metallic minerals, recycling construction waste and so on.

The production capacity of this one nuit stone crushing plant can achieve 200t/h -250t/h. The features are: high efficiency, low cost, high quality products, low energy consumption and so on.

PEV900X1200 as the preliminary jaw crusher.Easy changeable wearing parts of the crushing equipments are of high quality with abrasive characteristics,which decreasing the production cost,but increasing output greatly.

In secondary crushing process, we use impact crusher (PF-1320).The finished products are expected to be regular cube-shaped, needle shape take up small proportion, no inner-cracks, with high compressive strength. They are quite suitable for speedway, bridge, tunnel and other construction projects.

By utilizing a more efficient Vibrating Screen during the filtration processing, the raw material is more precisely and sufficiently classified. This production line can also be perfected by other supplementary equipments so as to get further processing products.

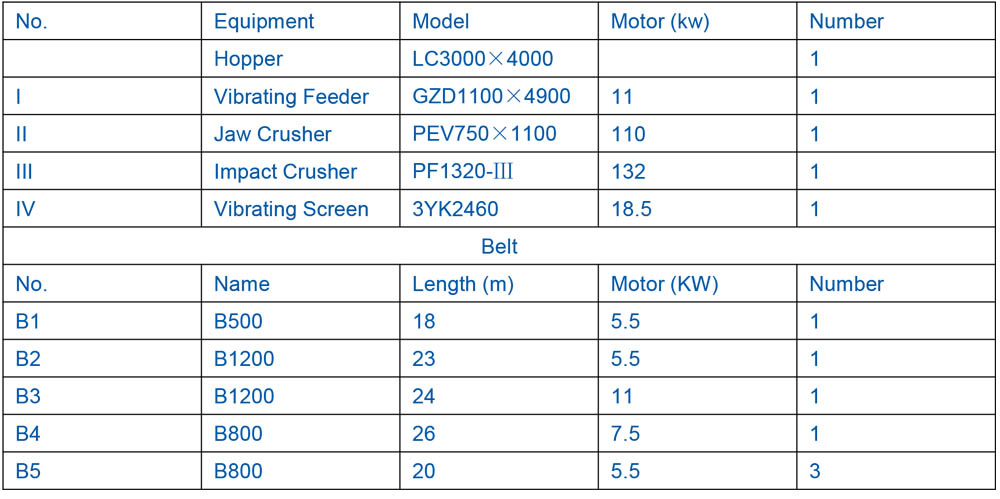

Technical Parameters:

Note: No further notice if the technical parameters change.
